Active Harmonic Filter Installation – Cardiff

We recently carried out the second phase of our Active harmonic filter installations at a large insulation manufacturer in Cardiff.

This supply now consists of 3 x 180amp P300-180/690V units connected in a Master/Slave/Slave configuration all controlled via the New Comsys HMI 4 display.

The harmonic distortion on this supply was around 8.5% THDV and 30% THDI. When the filters were connected and in operation, we saw a drop of over half to 3.5% THDV and 14% THDU.

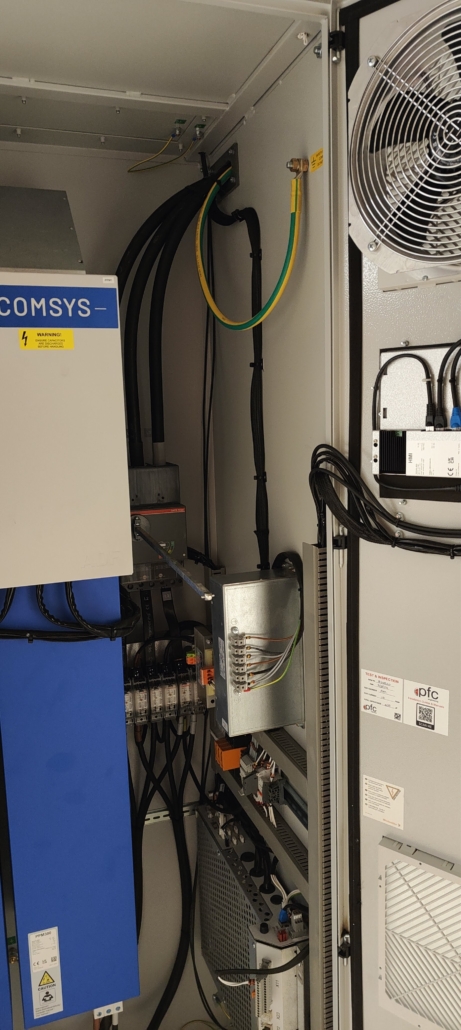

Built by our workshop team into a custom enclosure with added forced air ventilation and remote monitoring, then installed and commissioned by two of our engineers over 3 days with no disruption to the site operation.

Find out more about our Active Harmonic Filters here or contact us today.

Above: Site loadings Before Active Filter is off

Above: Site loadings Before Active Filter is on

October 25, 2024/by Ben Wallace
